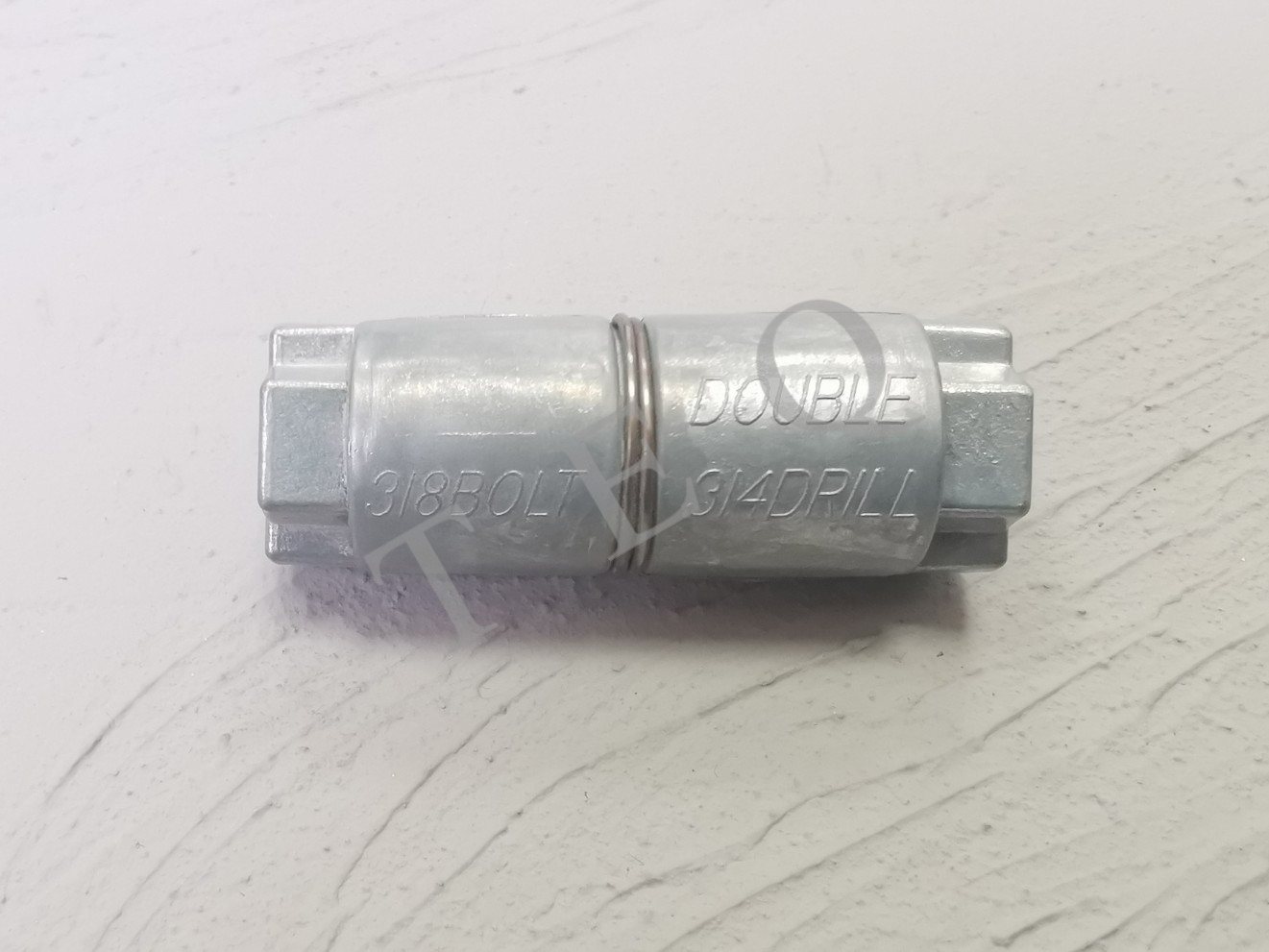

Lag Screw Shield Anchor

Lag Screw Shield Anchors

Can be used in all types of masonry from concrete to brick.
 Unique four-way expansion assures a tight grip even in out-of-round holes.
 Short style for hard masonry, long sytle for soft. Rust-proof.
 The test values listed were obtained using 200-250 kgs/cm2 concrete(no aggregate).
 A safe working load should not exceed 25% of stated value.

Installation of Lag Screw Shield Anchor

Type

Anchor Size

Min. Drill Dia.

Weight Kgs/1000pcs

Qty. Per Box/Ctn

Pull out Load (Kgs)

Short

1/4"

1/2"

13.5

50/500

250

5/16"

1/2"

13.6

50/500

440

3/8"

5/8"

30.7

50/500

640

1/2"

3/4"

41.8

50/500

1240

5/8"

7/8"

58.5

25/125

1280

3/4"

1"

73

25/125

1640

Long

1/4"

1/2"

18

50/500

310

5/16"

1/2"

23.6

50/500

620

3/8"

5/8"

43

50/500

1100

1/2"

3/4"

64.9

50/500

1670

5/8"

7/8"

100.5

25/125

1730

3/4"

1"

111.6

25/100

2020
