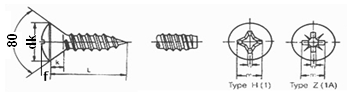

DIN7973 mm
| Thread size | 2.9 | 3.5 | 3.9 | 4.2 | 4.8 | 5.5 | 6.3 |
| dk | 5.5 | 6.8 | 7.5 | 8.1 | 9.5 | 10.8 | 12.4 |
| f | 0.9 | 1.2 | 1.3 | 1.4 | 1.5 | 1.7 | 2 |
| k | 1.7 | 2.1 | 2.3 | 2.5 | 3 | 3.4 | 3.8 |
| n | 0.8 | 1 | 1 | 1.2 | 1.2 | 1.6 | 1.6 |
| L | 6.5-25 | 6.5-50 | 9.5-50 | 9.5-63 | 9.5-63 | 13-75 | 13-75 |
DIN7983 mm
| Thread size | 2.9 | 3.5 | 3.9 | 4.2 | 4.8 | 5.5 | 6.3 |
| dk | 5.5 | 6.8 | 7.5 | 8.1 | 9.5 | 10.8 | 12.4 |
| f | 0.9 | 1.2 | 1.3 | 1.4 | 1.5 | 1.7 | 2 |
| k | 1.7 | 2.1 | 2.3 | 2.5 | 3 | 3.4 | 3.8 |
| Cross(Type H) m | 3.4 | 4.6 | 4.7 | 4.9 | 5.4 | 7 | 7.4 |
| Cross(Type Z) m | 3.1 | 4.3 | 4.4 | 4.6 | 5.1 | 6.6 | 7.1 |
| CrossNo | 1 | 1 | 2 | 2 | 2 | 3 | 3 |
| L | 6.5-25 | 6.5-50 | 9.5-50 | 9.5-63 | 9.5-63 | 13-75 | 13-75 |
