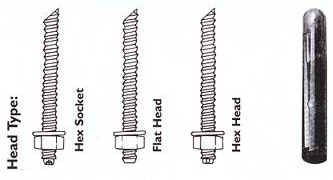

Chemical Anchors Studs in stainless steel and yellow zinc plated steel. Heavy duty fixing without radial influence of expansion forces can be used close to edges. Accurate drill depth is necessary. Fully loadable after the prescribed hardening-setting time.
|
Stud Size | Max. Thickness | Hole Size | Hole Depth |
M8X110 | 16 | 10 | 80 |
M10X130 | 22 | 12 | 90 |
M12X160 | 30 | 14 | 110 |
M16X190 | 38 | 18 | 125 |
M20X260 | 70 | 25 | 170 |
M24X300 | 65 | 28 | 210 |
M30X380 | 70 | 35 | 280 |
5/16"X4-1/2" | 3/4" | 3/8" | 3-3/8" |
3/8"X5" | 1" | 7/16" | 3-5/8" |
1/2"X6-1/4" | 1-1/4" | 9/16" | 3-9/16" |
5/8"X7-1/2" | 1-3/4" | 3/4" | 6" |
3/4"X10-1/4" | 2-3/4" | 7/8" | 7-1/2" |
7/8"X11-3/4" | 3-3/4" | 1" | 8-1/2" |
1"X11-3/4" | 2-1/2" | 1-1/8" | 8-1/2" |
1-1/4"X14-1/8" | 2" | 1-7/16" | 11-1/2" |
Metric / inch size available
Stainless steel chemical anchors and special length chemical anchors available
